10W 20W COFDM HD Transmitter For Two Videos Input Long Range Transmission
Key Features:
Overview:

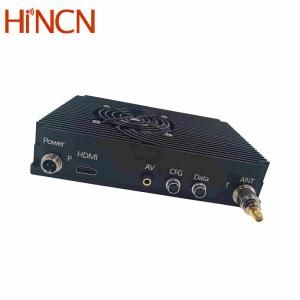

HCT531 COFDM HD transmitter is designed for use with HD or SD cameras, it's a superior miniature wireless video transmitter designed for capturing real time, high quality videos from Point of View Cameras, UAV,UGV,Body Cams,Concealments, and sport cameras. The transmitter has HDMI or AV inputs, adopts COFDM modulation technology and H.264/H.265 encoding to achieve low latency video audio transmission in high-speed motion and NLOS (none line of sight) conditions. The HCT531 wireless video transmitter delivers a power output up to 10W or 20W, housed in a small metal case, weight is less than 910 grams, providing long range, reliable HD wirless video transmission.
Technical Specifications:
| Input/ Output interface | |
| HD Video Input | HDMI Type-A connector |
| Composite Video Input | 3.5mm earphone connector |
| UART Data | YC8-3 connector,TTL3.3V by default(optional RS232) |
| TTL UART Control | YC8-4 connector,TTL 3.3V. |
| Power in | GX12-2 connector |
| RF output | TNC female |
| COFDM Wireless Modulation Transmission | |
| Wireless modulation | COFDM(DVB-T) |
| IFFT mode | 2K |
| Wireless bandwidth | 1MHz~8MHz adjustable,1KHz step forward |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard interval | 1/32, 1/16, 1/8, 1/4 |
| Constellation | QPSK, 16QAM, 64QAM |
| Wireless code stream | 0.5Mbps to 31.67Mbps( bites per second) |
| RF | |
| Frequency | Specify central working frequency F0 with band width about F0±15MHz, ranges available from 200~860MHz |
| Tuning Step Size | 1 KHz |
| Transmission power | 10W(40dBm) or 20W(43dBm) |
| Audio and video processing | |
| Video input | HDMI or CVBS, auto-detected after system start-up Optional: two channel video input/encoding/transmit at the same time |
| Video formats | 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@ 50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL) |
| Video encoding | H265/H264 |
| Audio input | HDMI embedded audio or analog audio |
| Audio format | AAC, 16bit, stereo, 32Kbps |
| Encryption | AES256 |
| Monitoring and Control | |
| Control | Comprehensive transmitter setup with our Parameter Configuration module or PC or other device via Control UART. |
| Temperature Range | |
| Full specification | 0° to +55°C Ambient |
| Storage | –40° to +80°C |
| Physical Characteristics | |
| Size | 180*136*38mm(Excludes protruding connectors) |
| Weight | 906g |
| Power requirements | |
| Input range | 24~30VDC(28V as default) |
| Power Consumption | <2.8A@24V(10W RF power) , <3.1A@24V(20W RF Power) |
| Latency | H265:200~300 ms; H264: 50~130 ms |
COFDM Video Transmitter Interface Signal:
Frequently Asked Questions:
Q1. Does your 10 watts/ 20 watts COFDM Wireless video transmitter support changing frequency to be 1.2G/ 1.4G?
A:The transmitter frequency range is 160MHz~2700MHz, but our COFDM wireless receiver only supports 170~860MHz, so if you want 1.2G or 1.4G, We suggest to intall a frequency down converter at the receiver end.
Q2. Does the wireless video transmitter support SDI video input?
A: Yes, We have different kinds of wireless video transmitters support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input, please just let us know what video type you prefer. We will introduce them to you accordingly.
Q3. What's the max distance for the 10W PA transmitter?
A: For UAV application, the transmission range is about 100km, The flight altitude of the UAV Drone is about 500 meters., and put the antennas of receiver as high as possible.
Q4. Does your transmitter and receiver support standard DVB-T protocol?
A: Yes, it supports 3 working modes:
Q5.I want a set of wireless video transmitter and receiver to transmit two channels at the same time, one HDMI video and one audio.
A: Our COFDM weireless transmitters support one HDMI and one auxiliary CVBS audio and video input at the same time. Currently, it can only support one sound source, which can be modified by our parameter configuration board, to choose HDMI sound or CVBS sound.
