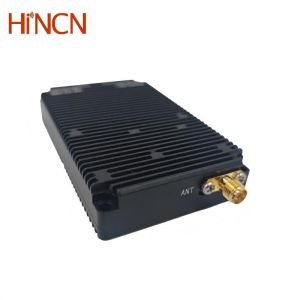

Mesh Radio Link Wireless Data Transmitter For Drone Long Range Communication
Key Features:
Overview:
HNC1 self-organizing Mesh radio wireless data transmitter enables centerless long range real time communication between large-scale nodes, all nodes can communicate with each other independently without interfering, supports large-scale dense node access to wireless transmission, dynamic networking and flexible reorganization, supports full-multiplexing communication, the node sends data at the same time it can also receive the data of all other nodes without interfering with each other, and in the absence of the center, it can realize the interoperability of any node and all other nodes in the network. Without interfering with each other, it can realize the interconnection between any node in the network and all other nodes in the case of no center.
HNC1 data link mesh radio supports large-scale node access, multi-hop self-organizing network, 20W transmit power, -114dBm sensitivity, maximum 735kbps effective data transmission rate, 2ms ultra-low latency, which can be used for swarming drones, Internet of Things, data chain, remote control, data collection, artificial intelligence, military equipment and other application scenarios.
HNC1 20W data link mesh radio models:
| Model | RF Power | Network Scale | Frequency Bands |
| HNC1-H800-20W | 20W | Max. 1024 nodes, up to 16 hops | 820~854MHz |
| HNC1-H900-20W | 900~940MHz | ||
| HNC1-F800-20W | 20W | Max. 256 nodes, up to 3 hops | 820~854MHz |
| HNC1-F900-20W | 900~940MHz | ||
Technical Specifications:
| Frequency | Different models support different frequency bands, see above models table |
| Bandwidths | 1MHz/500kHz/250kHz/125kHz selectable |
| Frequency hopping speed: |
|
| Effective data rate |
|
| Full-multiplexing communication | Support |
| Air-to-ground LOS(light of sight) distance | ≥300km |
| Centerless self-organized network | Support centerless self-organized network, any node of the network is destroyed without affecting the communication; |
| Network construction time | Within 1 second |
| Wireless transmission delay | Minimum 2ms |
| Dynamic topology | Support dynamic topology, support node joining and leaving, network topology change and deformation can be normal communication; |
| RF power | 20W(43dBm) |
| Sensitivity |
|
| Frequency stability | ≤1ppm |
| Modulation | QPSK modulation LDPC coding |
| Encryption | 128-bit encryption |
| Low power consumption((varies by data rate) | Less than 1.5W(0.06A/24V) when receiving, transmission power consumption (B is in bytes):
|
| Operating voltage | 24V as default, supports a wide voltage input of 7-36V. Transmission power varies with voltage:
|
| Operating temperature | -40～+55°C |
| Dimensions | 82.5*52*16mm |
| Weight | 90.7g |
| Input /Output | Description |
| J30JZ-9PIN connector | Power-input, uart, M0 control signals |
| M1 Dipswitch | M1 control signal |
| SMA female | Antenna port, the required antenna impedance is 50Ω |
J30JZ-9PIN connector
J30JZ-9PIN connector PIN signal can be assembled as TTL3.3Vor RS232 uart port or RS422 uart port
