Supports wireless link rates up to 735kbps.
Supports Point-to-Point, Point-to-Multipoint, Multipoint-to-Point and Mesh topologies.
Supports mesh network with a maximum of 1024 nodes .
High sensitivity: when the data rate is 125kHz, the sensitivity is -114 dBm.
Supports frequency hopping(FHSS).
Air-to-ground LOS(light of sight) distance: ≥30km.
With two serial ports (TTL/RS232/RS422 optional).

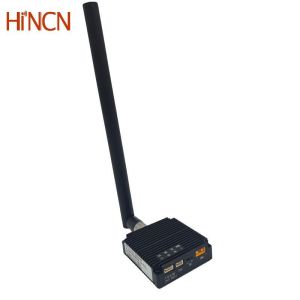

Overview of HNC2 -500mW UAV data link:

It realizes the centerless long-distance communication between large-scale nodes, all nodes can communicate with each other independently without interfering.
Support large-scale dense node access to wireless transmission, dynamic networking and flexible reorganization
Support full-multiplexing communication, the node can not only send data but also receive data from all other nodes simultaneously without interfering with each other,
In the absence of the center, it can realize the interoperability of any node and all other nodes in the network.
It can realize the interconnection between any node in the network and all other nodes in the case of no center.

UAV Data link Application:

It is widely used in swarming drones, Internet of Things, data chain, remote control, data collection, artificial intelligence, military communication and other application scenarios.

HNC2 500mW UAV data link models:

Model	RF Power	Network Scale	Frequency Bands
HNC2-H400-500mW	500mW	Max. 1024 nodes, up to 16 hops	430~450MHz
HNC2-H800-500mW			820~854MHz
HNC2-H900-500mW			900~940MHz

HNC2-F400-500mW	500W	Max. 256 nodes, up to 3 hops	430~450MHz
HNC2-F800-500mW			820~854MHz
HNC2-F900-500mW			900~940MHz

Technical Specifications:

UAV Data Link Radio Telemetry For RC Drone Airplane Real Time Transmission
Model Number	HNC2-500mW
Frequency	Different models support different frequency bands, see above models table
Bandwidths	1MHz/500kHz/250kHz/125kHz selectable
Number of nodes and hops	Maximum 1024 nodes up to 16 hops or 256 nodes up to 3 hops, see models table
Frequency hopping speed:	1MHz:Over 1800 times per second 500kHz:Over 900 times per second 250kHz:Over 450 times per second 125kHz:Over 225 times per second
Effective data rate	1MHz: Up to 735kbps 500kHz:Up to 370kbps 250kHz: Up to 185kbps 125kHz: Up to 92kbps
Full-multiplexing communication	Support
Air-to-ground LOS(light of sight) distance	≥30km
Centerless self-organized network	Support centerless self-organized network, any node of the network is destroyed without affecting the communication;
Network construction time	Within 1 second
Wireless transmission delay	Minimum 2ms
Dynamic topology	Support dynamic topology, support node joining and leaving, network topology change and deformation can be normal communication;
RF power	500mW(27dBm)
Sensitivity	125kHz:-114dBm 250kHz: -111dBm 500kHz:-108dBm 1MHz:-105dBm
Frequency stability	≤1ppm
Modulation	QPSK modulation LDPC coding
Encryption	128-bit encryption
Low power consumption	less than 1W when receiving, less than 4W when transmitting, average working power consumption less than 2.5W;
Operating voltage	24V as default, supports a wide voltage input of 7-36V.
Operating temperature	-40～+85°C
Dimensions	535317.3mm
Weight	65g

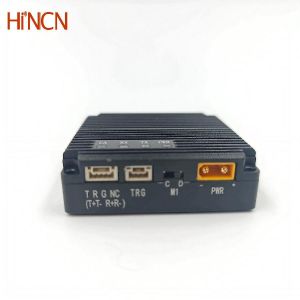

Input/ Output

I/O	Description
Power-in	Power-input, XT30PW-M connector
Dip-switch	Dial switch, switch between configuration mode and transparent transmission mode
Uart 1	Configure/transparent data serial port 1, TTL 3.3V level as default,optional RS232 or RS422 serial port
Uart 2	Transparent data serial port 2, TTL 3.3V level as default,optional RS232 or RS422 serial port
ANT	SMA female, antenna port, the required antenna impedance is 50Ω
PWR-LED	Red, power input status indicator led, continuous light on when power input is normal
RX-LED	Green, data receiving indicator led, briefly lit during power on self-test, light on when receiving data
TX-LED	Green, data transmitting indicator led, briefly lit during power on self-test, light on when transmitting data
CA-LED	Blue, interference indicator led, briefly lit during power on self-test, frequently lit in configuration mode. In transparent transmission mode: When the light is on, there is interference with the air interface, and the brighter the light, the stronger the interference.
