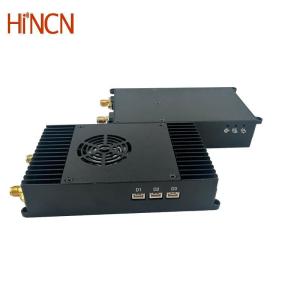

The HCL536 is a TDD full duplex wireless transceiver,which is specifically designed for long range two way data and video data transmission. It operates at 800MHz or 1.4GHz bands, support multiple bandwidth allocation and with strong transmission capabilities and high signal confidentiality.,etc.
| Specification | Details |
|---|---|
| Name | IP Communications Full Duplex Transceiver With Multiple Bandwidth TDD Technology |
| Modulation | TDD OFDM |
| Frequency | 806~826MHz, 1428~1468MHz, 1420~1530MHz |
| FHSS | Support |
| Bandwidths | 1.4/3/5/10/20MHz |
| Throughput | Maximum 30Mbps at 20MHz bandwidth |
| RF Transmission Power | 2W or 5W |
| Constellation | QPSK, 16QAM, 64QAM self adaption |
| Sensitivity | -108dBm(1Mbps) |
| Ethernet ports | 2 × Ethernet ports |
| Serial ports | 3 channels, 3×RS232, 3×TTL or 2×RS232/TTL + 1×Sbus |
| Transmission Range | 22~100km (UAV to Ground) |
| Management | Web UI and Control Uart |
| Encryption | AES128 |
| Networking Mode | Point to Point, Point to Multipoint, Relay, Mesh |
| Movement Speed | Support no less than 300km/h |
| Power Input | 12~18V(2W), 24~28V(5W) |
| Power Consumption | <12W(RF Power 2W), <22W(RF Power 5W) |
| Dimensions | 103.4×61.4×22mm |
| Weight | 142g |
| Customization | Support |
The HCL536 wireless transceiver supports duplex transmission and can achieve wireless video downlink transmission of up to 100km from UAV to ground control stations with high quality and stable image signal. It is also applicable for image transmission on the ground and can be applied in fields such as public safety investigations, UGV, special robots, etc.
